HQ Concrete Blocks

HQ Blocks

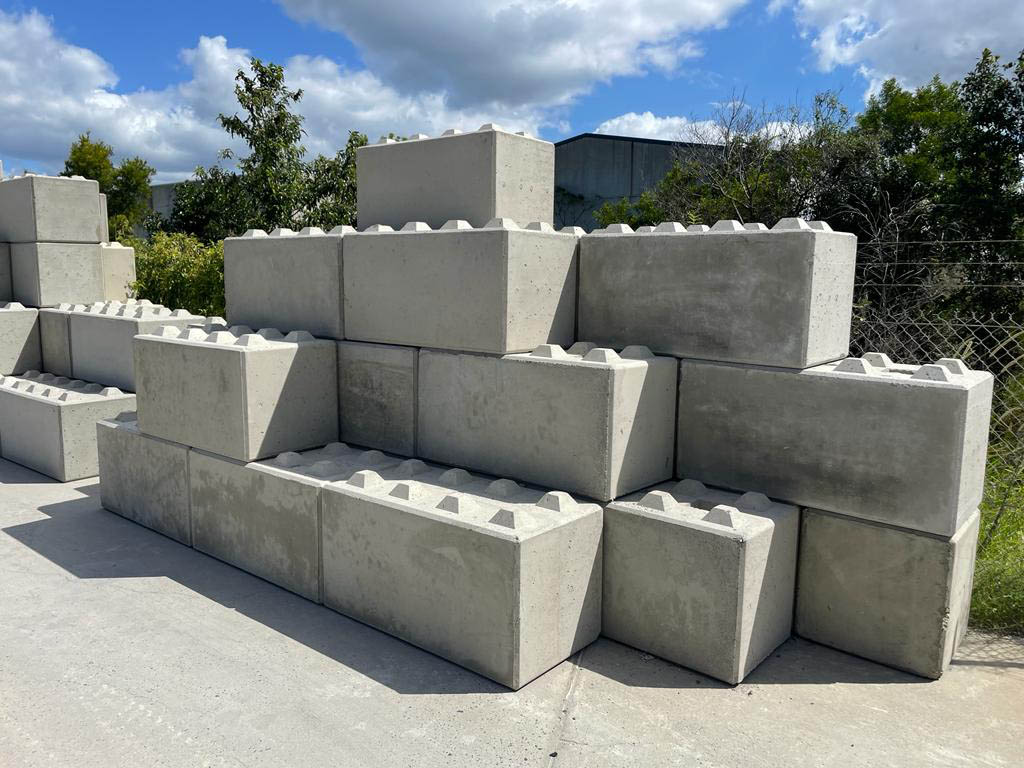

HQ Blocks are a repositionable and reusable stacking system, interlocking without the use of any other materials. This modular system provides the flexibility of masonry with the speed and strength of concrete.

The system has limitless construction uses and is ideal for either temporary or permanent building structures and can be used multiple times.

HQ blocks can be manufactured in a wide variety of colours, finishes and customised sizes.

As each HQ block has its own lifting pin, you can easily change the way in which they are configured without the need for specialist lifting equipment or grabs.

What can HQ Blocks be used for?

  • Retaining Walls / Earth Retention
  • Material Storage Bays
  • Erosion / Flood Prevention
  • Waste and Recycling Storage
  • Concrete Weights
  • Noise barriers
  • Vehicle barriers

Retaining Block Dimensions

HQ Block structural designs for the use as retainer walls are available upon request.

IMPORTANT NOTE: It is the customer’s responsibility to ensure structural checks are carried out before any HQ Blocks are installed.

Weights provided may vary.

Download Block CAD Drawing

HQB1 * 300 x 600 x 600 flat top

weight 130kg

HQB2 * 300 x 600 x 600

weight 130kg

HQB3 * 600mm x 600mm x 600mm flat top

weight 500kg

HQB4 * 600mm x 600mm x 600mm

weight 500kg

HQB5 * 900mm x 600mm x 600mm flat top

weight 750kg

HQB6 * 900mm x 600mm x 600mm

weight 750kg

HQB7 * 1200mm x 600mm x 600mm flat top

weight 1000kg

HQB8 * 1200mm x 600mm x 600mm

weight 1000kg

HQB9 * 1200 x 600 x 600 flat top

weight 750 kg

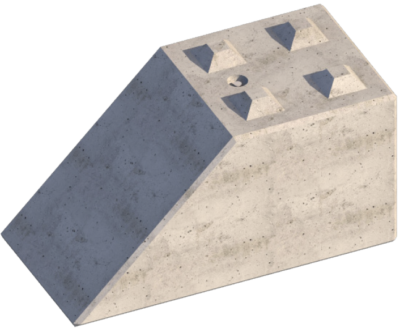

HQB10 * 1200 x 600 x 600

weight 750 kg

HQB11 * Speader

weight 250 kg
